Torqeedo Recreational Travel XP S Tiller

Videos
Call for Price
Overview
For tenders, dinghies and daysailers up to 2 tons

Product description

  • Powerful performance: The Travel XP provides 44% more thrust than the standard Travel model, making it ideal for bigger boats and challenging conditions.
  • 5 HP-equivalent: With 1600 W of electric power, the Travel XP offers the equivalent thrust of a 5 HP outboard motor, ensuring efficient and reliable performance.
  • Lightweight and portable: The Travel XP's motor weighs just 12.6 kg (27.8 lbs), making it easy to handle and install.
  • Lithium battery: The Travel XP is available with a high-capacity 1425 Wh lithium battery pack (9.6 kg) that's easy to use, and it supports various charging options, including solar power.
  • Emission-free boating: Experience emission-free and eco-friendly boating with the Travel XP, contributing to a cleaner and greener environment.
  • Length of shaft: 62,5cm (Travel S), 75cm (Travel L)
  • Available with tiller control (type T) or remote control (type R)

Bigger boat? More challenging conditions? Look to the Power Package! The Travel XP forms the heart of the Power Package, and with 25% more thrust than the Travel, it has the grit to get the job done. At 1600 W of pure electric power, the Travel XP is the most powerful outboard with an integrated battery available from industrial production. This 5 HP-equivalent, high-thrust outboard is perfect for heavier boats up to 2 tons or more demanding applications, boating in coastal waters, or overcoming windy or wavy conditions. The ultra-quiet and reliable direct drive motor is lightweight and easy to handle at just 12.6 kg (27.8 lbs). It's easy to install and use, too, with a stable handle on the shaft head, a handy lever for quick steering adjustments (360° // ±60° // fixed), and flexible tilt and trim positions. Emission-free boating just powered up - experience the Travel XP today!

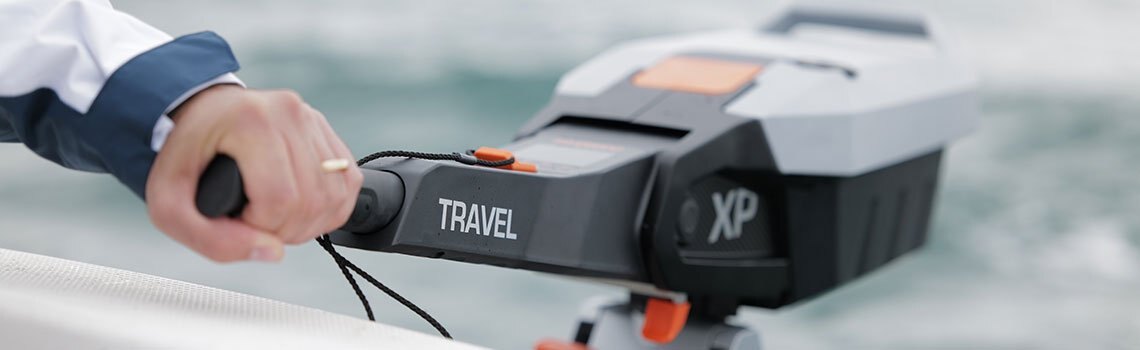

The backlit color display is built right in, with all the information you need including speed, consumption, charge status, and remaining range in time or distance. WiFi and BlueTooth come standard, so you can easily connect to the TorqView app for maps, trip logging, usage stats, maintenance info, OTA updates and other high-tech features.

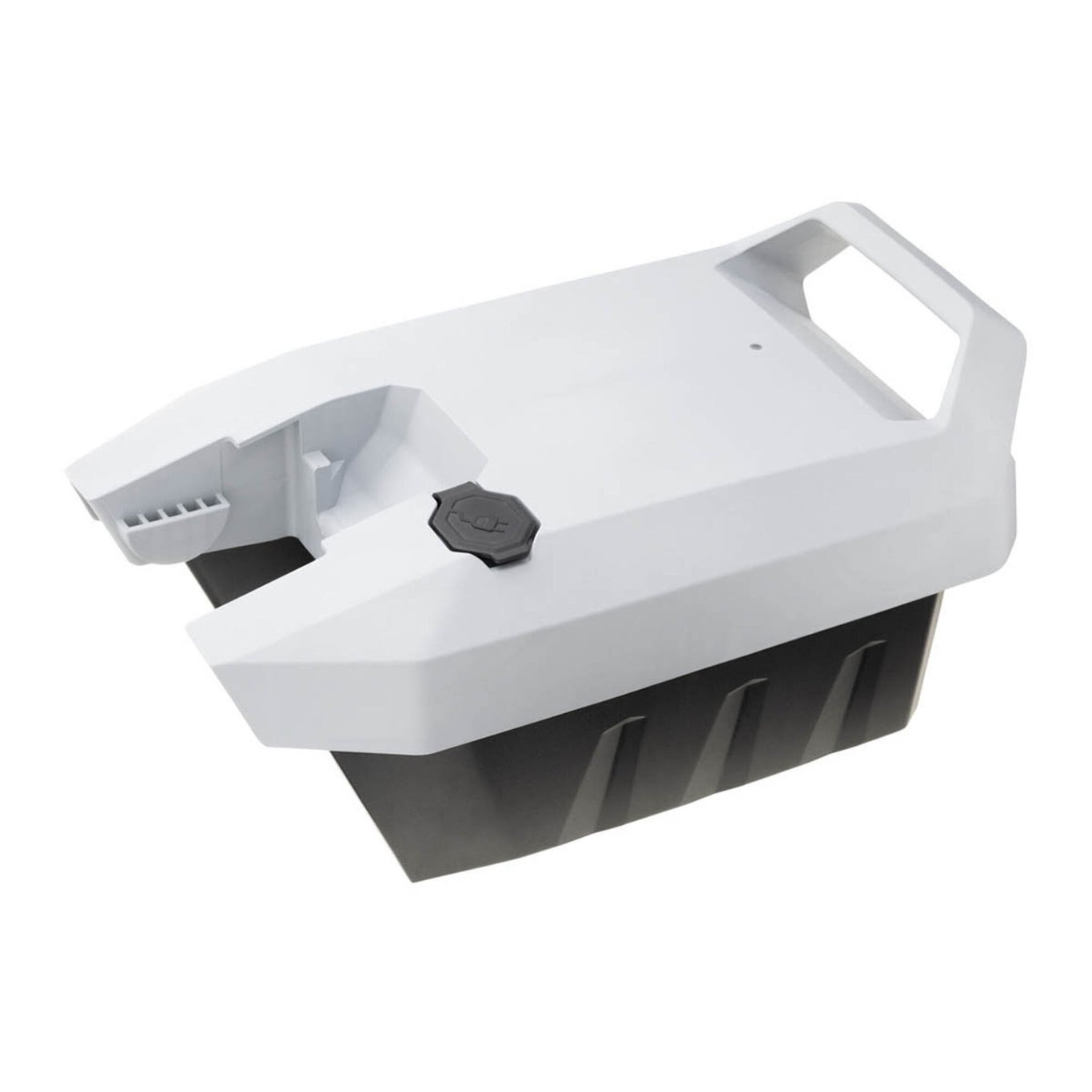

The battery is the core of an emission-free drive system, and the Travel XP's Power Package benefits from a whopping 1425 Wh integrated lithium pack that's still easy to handle at 9.6 kg (21 lbs). A click-and-play design means no more cables to connect, and a handy LED lets you know charge status at a glance, even when your battery is not connected. Simply plug in to charge with the fast 180 W mains charger, charge directly from the boat with the 12V/24V charge cable, or even go solar with the solar charge cable and solar panels up to 200 Wp! Torqeedo has offered lithium battery-powered marine drives since 2005, and we offer the most comprehensive and integrated protection and safety concept for lithium batteries on the market. Charge into the future of marine mobility with the Power Package!



Specifications
Model
Recreational Travel
Category Name
Outboard Engines
Year
2025
Sale Type
New
Manufacturer
Torqeedo
EAN
4260113697368
Battery
Travel Battery XP, No Battery
Input Power
1.600 W
Item Number
1162-00
Shaft Length
62,5 cm (ideal for 15 inch transom height)
Weight (incl. Batttery)
22,2 kg
Recommend Battery (Li-Ion)
1.425 Wh
high performance, speed and range

As tested on a one-class racing sailboat



Speed in km/h* Range in km* Running time in hours*
Slow 5.8 18.2 3:08
Half throttle 7.6 11.9 1:34
Full throttle 9.4 7.4 0:47

*The specified performance values are achieved at an outside temperature of 22 °C. Deviations due to outside temperature, current and weight of the boat are possible.

As tested on a 3.8 m inflatable dinghy



Speed in km/h* Range in km* Running time in hours*
Slow 6.5 20.4 3:08
Half throttle 7.8 12.2 1:34
Full throttle 10 7.8 0:47

*The specified performance values are achieved at an outside temperature of 22 °C. Deviations due to outside temperature, current and weight of the boat are possible.

As tested on a 2-ton sailboat



Speed in km/h* Range in km* Running time in hours*
Slow 6.1 13 3:08
Half throttle 7.2 11.3 1:34
Full throttle 8.9 6.7 0:47

*The specified performance values are achieved at an outside temperature of 22 °C. Deviations due to outside temperature, current and weight of the boat are possible.

Intelligent battery management system (BMS)

Our intelligent battery management system (BMS) can systematically reduce the maximum power output of the electric motor to prevent overloads and extend the service life of the battery. If necessary, the BMS reduces the power output to improve the range and ensure maximum safety. This temporary power-limiting regulation is particularly effective in challenging conditions such as high ambient temperatures or insufficient cooling of the battery.
If you notice a continuous drop in performance while driving, this is due to the battery's protective device. You can avoid or reduce temporary power limitations by observing the following points:
(a) Avoid heating the battery before operation, e.g. through exposure to sunlight.
b) Operate your electric motor in the most efficient power range possible. In many applications, 30% of the maximum power must be used for the last 10% of the achievable maximum speed. For longer journeys, we therefore recommend selecting a moderate power range from the start of the journey.
c) If a power limitation sets in, additionally reduce the power if possible or allow the battery to cool down during a break.



literature

Name

Link

Drawing Travel XP L Download
Drawing Travel XP RL Download
Operating Instructions Download
