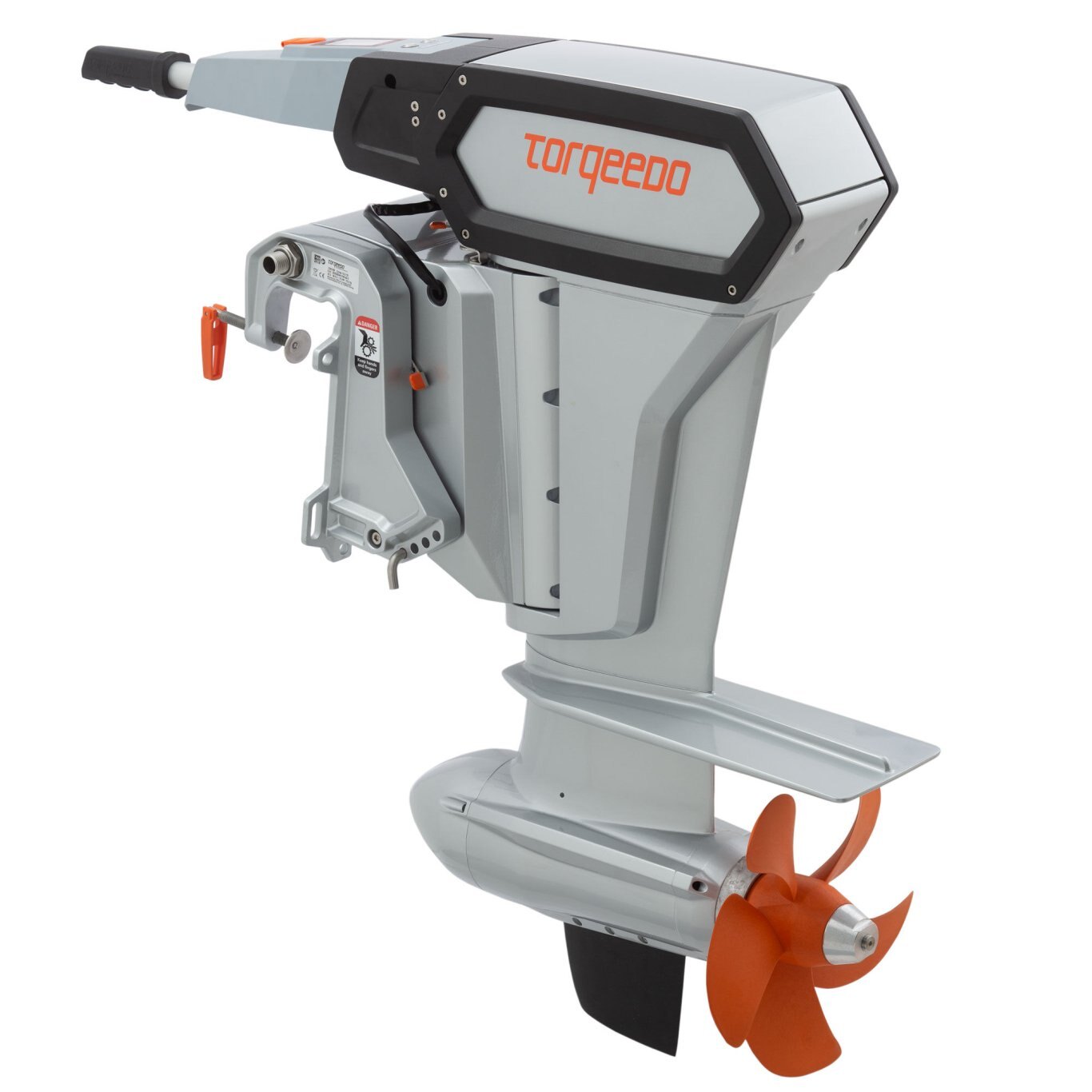

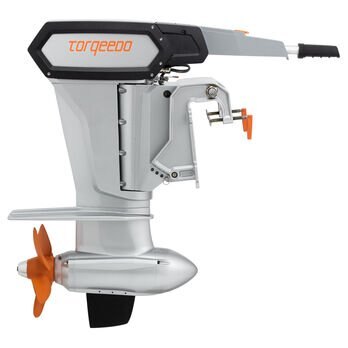

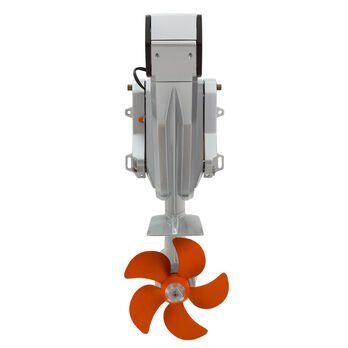

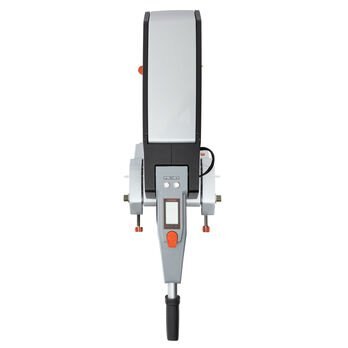

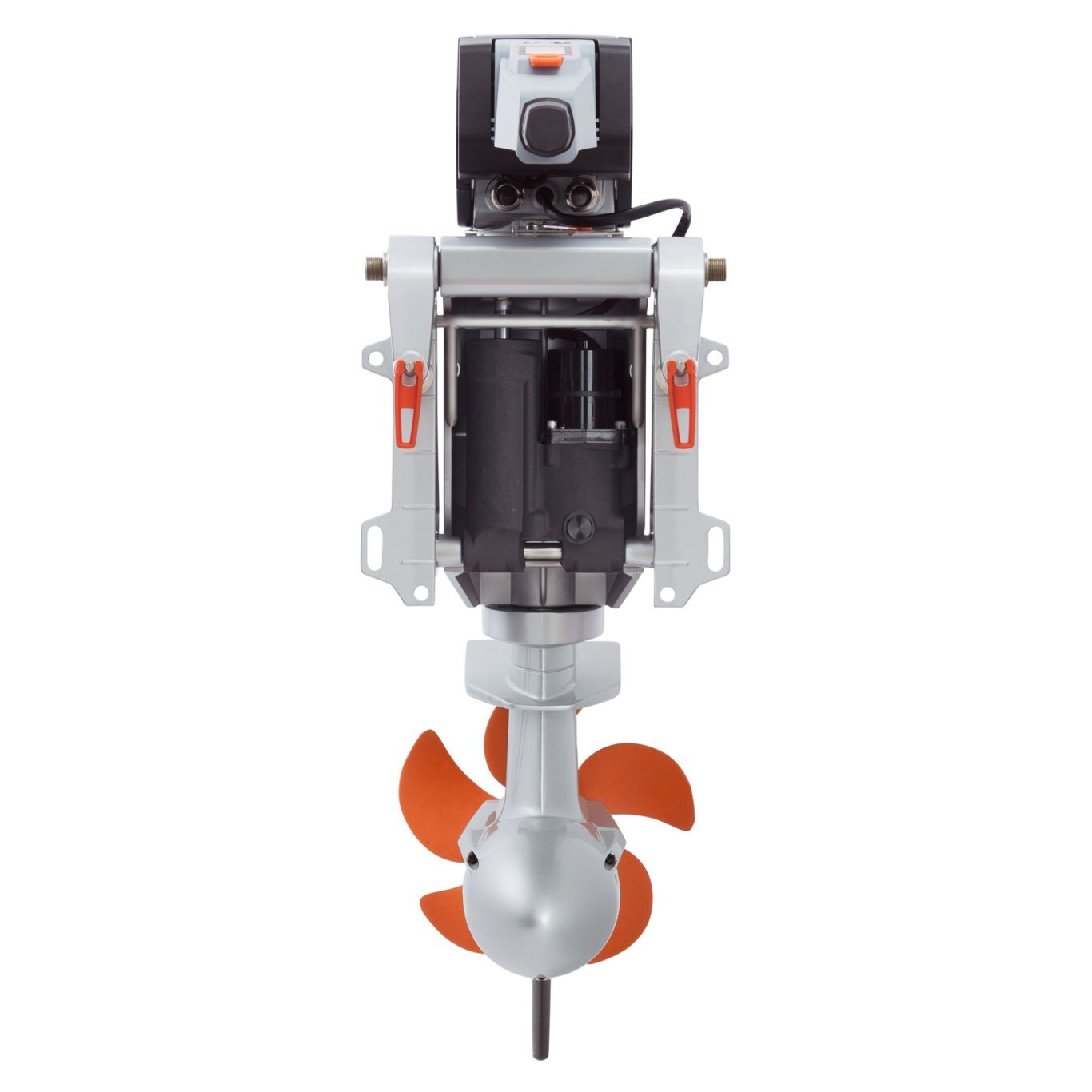

Torqeedo Recreational Cruise 10.0 TS

  • Torqeedo Recreational Cruise 10.0 TS
  • Torqeedo Recreational Cruise 10.0 TS
  • Torqeedo Recreational Cruise 10.0 TS
  • Torqeedo Recreational Cruise 10.0 TS
  • Torqeedo Recreational Cruise 10.0 TS
  • Torqeedo Recreational Cruise 10.0 TS
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Electric outboard for motorboats and sailboats up to 10 tons

Product description

  • Tiller-equipped version of the Cruise 10.0
  • 12 kW peak output, 10 kW continuous output – powerful propulsion comparable to a 20 HP combustion engine
  • Intelligent on-board computer and the full convenience of a Torqeedo electric drive system
  • Electric tilting device for ease of operation
  • Easy handling thanks to low-voltage level (48 Volt)
  • Very robust design – corrosion-protected, sea water-capable and completely waterproof (IP67)
  • Slimline construction - elegant and modern
  • Versions: short shaft S: 38.5cm shaft length, long shaft L: 51.2cm shaft length, extra long shaft XL: 63.9cm shaft length
  • Weight: 60.3 kg (S), 61.8 kg (L) , 63.0 kg (XL)
  • To operate the Cruise 10.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
  • Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons.



Specifications
Model
Recreational Cruise
Category Name
Outboard Engines
Year
2025
Sale Type
New
Manufacturer
Torqeedo
EAN
4260113696194
Control
Remote throttle
Steering
Provision to connect to standard remote steering
Tilt Angle
+-45°
Item Number
1243-20
Trim Device
Manual, 4-step
Tilting Device
Electrohydraulic tilt device with overload protection.
Nominal Voltage
48
Shaft Length In Cm
38.5
Total Weight In Kg
60.3
Input Power In Watts
10,000
Static Thrust In Lbs*
≤ 405
Propulsive Power In Watts
5,600
Alternative Propeller Options
v32/p10k & v15/p10k
Maximum Propeller Speed In Rpm
1,400
Maximum Overall Efficiency In %
56
Comparable Petrol Outboards (thrust)
25 HP
Comparable Petrol Outboards (propulsive Power)
20 HP
Standard Propeller V = Speed In Km/h At P = Power In Watts
v22/p10k
benefits
  • High-efficiency outboard with 10,000 W input power, equivalent to the thrust of a 20 HP petrol outboard
  • Pair with two Power 48-5000 for maximum performance and accurate range/runtime functionality
  • Also compatible with third-party batteries (48-Volt) but careful matching to motor power requirements is needed and addition of cable set part number 1979-00 is required: Power 48-5000 is strongly recommended for best motor performance
  • T models are equipped with tiller control with display screen and magnetic kill switch (included in scope of delivery)
  • Rugged pylon with integral fin – extra protection when running aground
  • Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
  • Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater



range
Cruise 10.0 T with 2 x Power 48-5000



 Speed in knots (km/h)* Range in sm (km)* Running time in hours:
Slow 4.2 (7.8) 32,0 (60,0) 06:00
Full throttle 14,0 (26.5) 14,0 (26.5) 01:00

* Dependent on factors such as type of boat, load, propeller and ambient conditions. Figures for speed and range are indicative only and are not a guarantee of performance.

Information on range and speed

For a displacement boat making way through the water, the required propulsive power increases in proportion to the cube of the speed. This means that if you want to double your speed, you need eight times as much power.

And vice-versa, a small reduction in speed is enough to increase the achievable range substantially.

The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.



literature

Name

Link
Declaration of Conformity Cruise 3/6/12 Download
Technical Drawing Download
Operating Instructions Download
Product brochure Download
