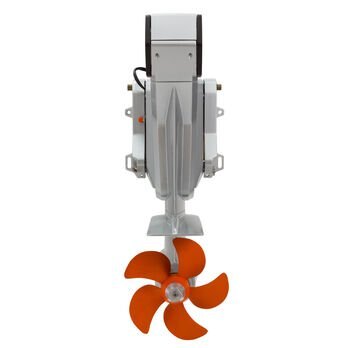

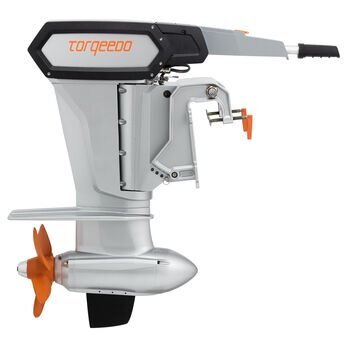

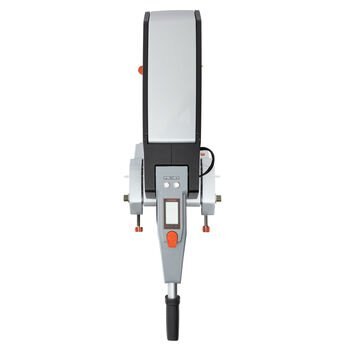

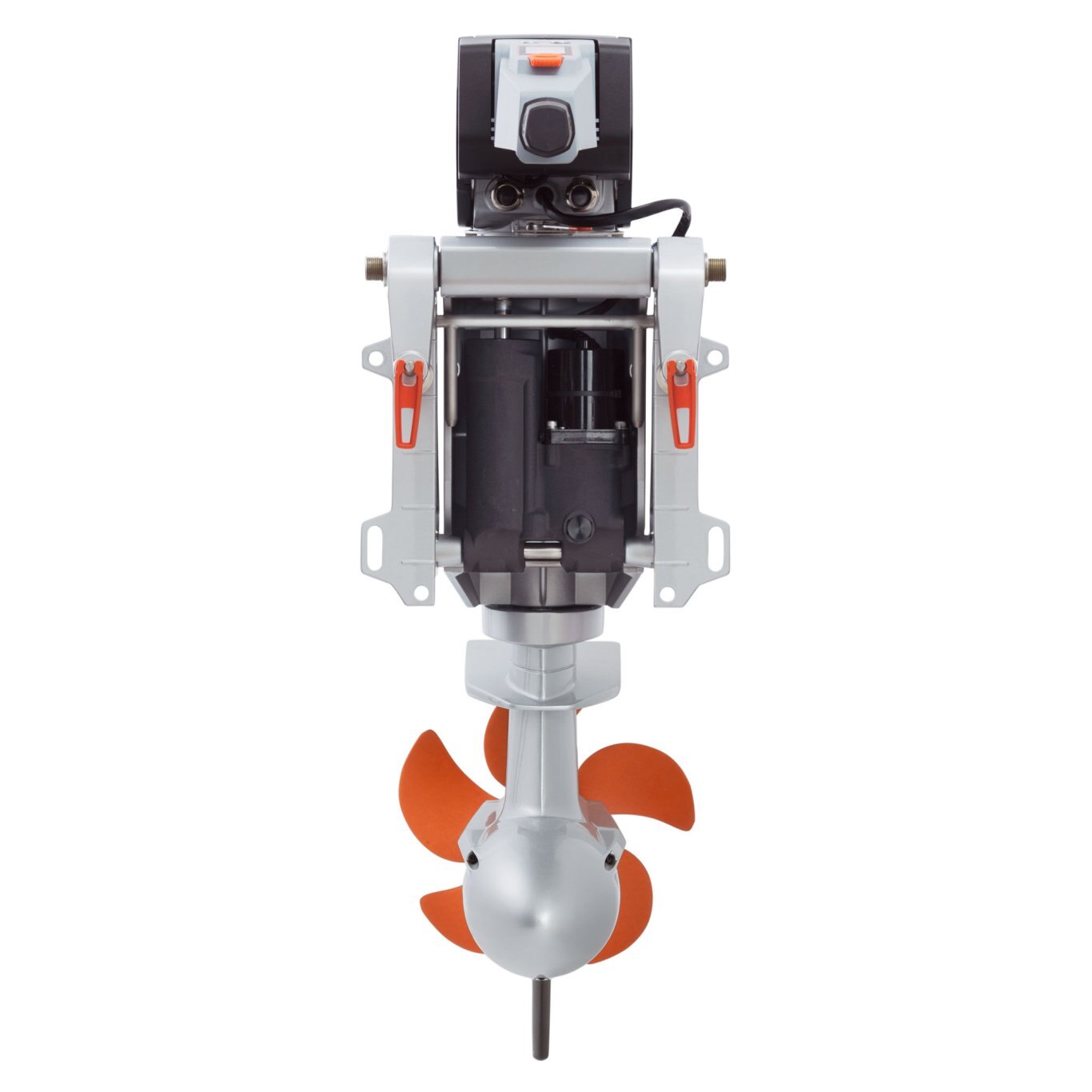

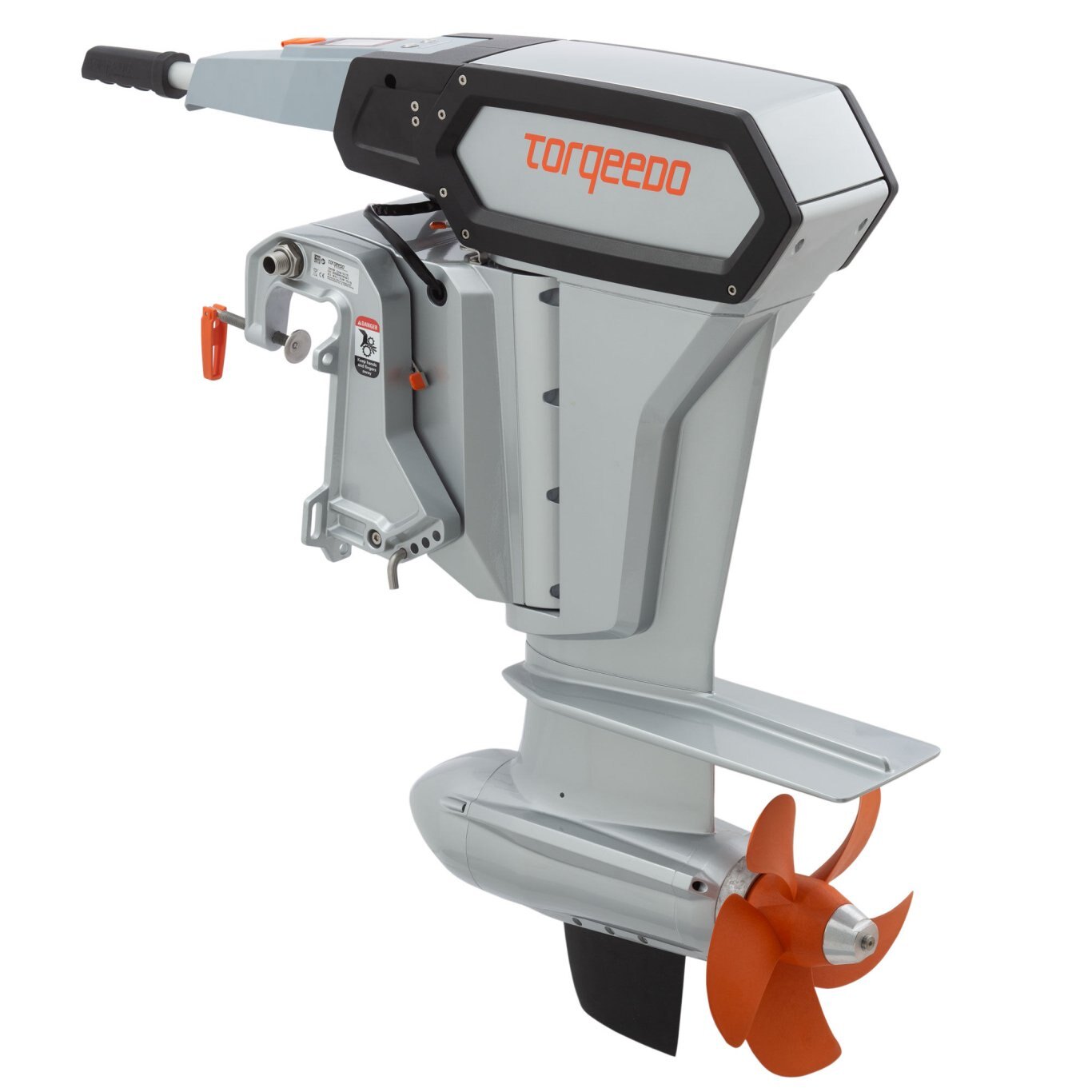

Torqeedo Recreational Cruise 10.0 TXL

Name: Torqeedo Recreational Cruise 10.0 TXL
Brand: Torqeedo
Availability: OutOfStock

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

Electric outboard for motorboats and sailboats up to 10 tons

Product description

Tiller-equipped version of the Cruise 10.0
12 kW peak output, 10 kW continuous output – powerful propulsion comparable to a 20 HP combustion engine
Intelligent on-board computer and the full convenience of a Torqeedo electric drive system
Electric tilting device for ease of operation
Easy handling thanks to low-voltage level (48 Volt)
Very robust design – corrosion-protected, sea water-capable and completely waterproof (IP67)
Slimline construction - elegant and modern
Versions: short shaft S: 38.5cm shaft length, long shaft L: 51.2cm shaft length, extra long shaft XL: 63.9cm shaft length
Weight: 60.3 kg (S), 61.8 kg (L) , 63.0 kg (XL)
To operate the Cruise 10.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery

Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons.

Specifications

Model

Recreational Cruise

Category Name

Outboard Engines

Year

2025

Sale Type

New

Manufacturer

Torqeedo

EAN

4260113696217

Control

Remote throttle

Steering

Provision to connect to standard remote steering

Tilt Angle

+-45°

Item Number

1245-20

Trim Device

Manual, 4-step

Tilting Device

Electrohydraulic tilt device with overload protection.

Nominal Voltage

Shaft Length In Cm

63.9

Total Weight In Kg

Input Power In Watts

10,000

Static Thrust In Lbs*

≤ 405

Propulsive Power In Watts

5,600

Alternative Propeller Options

v32/p10k & v15/p10k

Maximum Propeller Speed In Rpm

1,400

Maximum Overall Efficiency In %

Comparable Petrol Outboards (thrust)

25 HP

Comparable Petrol Outboards (propulsive Power)

20 HP

Standard Propeller V = Speed In Km/h At P = Power In Watts

v22/p10k

benefits

High-efficiency outboard with 10,000 W input power, equivalent to the thrust of a 20 HP petrol outboard
Pair with two Power 48-5000 for maximum performance and accurate range/runtime functionality
Also compatible with third-party batteries (48-Volt) but careful matching to motor power requirements is needed and addition of cable set part number 1979-00 is required: Power 48-5000 is strongly recommended for best motor performance
T models are equipped with tiller control with display screen and magnetic kill switch (included in scope of delivery)
Rugged pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater

range

Cruise 10.0 T with 2 x Power 48-5000

	Speed in knots (km/h)*	Range in sm (km)*	Running time in hours:
Slow	4.2 (7.8)	32,0 (60,0)	06:00
Full throttle	14,0 (26.5)	14,0 (26.5)	01:00

* Dependent on factors such as type of boat, load, propeller and ambient conditions. Figures for speed and range are indicative only and are not a guarantee of performance.

Information on range and speed

For a displacement boat making way through the water, the required propulsive power increases in proportion to the cube of the speed. This means that if you want to double your speed, you need eight times as much power.

And vice-versa, a small reduction in speed is enough to increase the achievable range substantially.

The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.
