Torqeedo Commercial Deep Blue 25 RL

Videos
Call for Price
Overview
For commercial operators and green boaters

Product description

  • Electric outboard - part of a complete system with modular design for leisure boats and commercial use
  • 25 kW - 40 hp equivalent
  • A synthesis of performance and a perfectly integrated overall system with a ground-breaking safety concept that sets Deep Blue apart from all other electric drive systems on the market

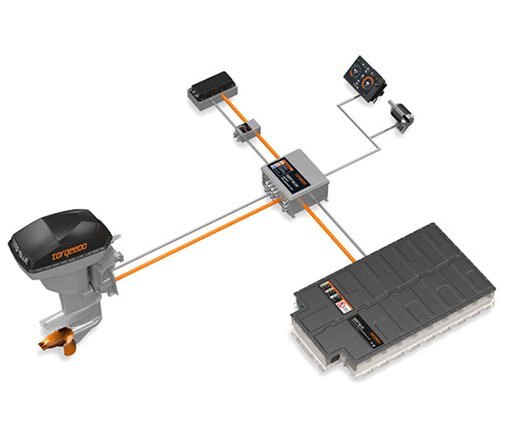

  • All the components of the system are perfectly engineered to match each other and are completely watertight
  • We provide up to 9-year warranty on the Deep Blue's battery capacity with private use
  • Electric boat propulsion is not only powerful and safe, it is also a genuine commercial alternative for heavy users
  • Special tariff from Pantaenius Yacht Insurance with improved insurance protection and lower premiums compared with the normal tariff for boats with other high-voltage drives
  • Transparent maintenance overhead - an electric drive system requires far less maintenance than comparable drive systems using fossil fuel
  • Shaft length: 51 cm (short shaft) / 63.5 cm (long shaft)

It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market.

All the components of the system are perfectly engineered to match each other and are completely waterproof. State-of-the art monitoring technology with pilot lines and insulation monitors safeguard the high-voltage system against the risk of short circuits. The same high-performance lithium batteries used to power cars also power Deep Blue – after we developed them further for use in boats. These and many more safety and performance features make Deep Blue a unique high-voltage propulsion system for electric boats.

We provide up to 9-year warranty on Deep Blue's battery capacity with private use.



Specifications
Model
Commercial Deep Blue
Category Name
Outboard Engines
Year
2025
Sale Type
New
Manufacturer
Torqeedo
EAN
4260113693377
Cooling
Direct water cooling
Conformity
IEC 60034-1 IEC 60349-2 IEC 60146-1-1
Item Number
3203-00
Shaft Length
20” / 51 cm
Max. Shaft Rpm
1830 1/min
Dimension L/W/H
868 x 394 x 1,535 mm
Nominal Voltage
350 V
Scope Of Supply
Outboard motor Cabling Standard high speed propeller Electric tilt and trim
Propeller Mounting
Gearcase: 4 ¼ “ Shaft: 13 teeth
Standard Propeller
Standard high speed propeller: Diameter 12,5” /Pitch 15,8” / 5 Blade
Protection Category
IP 67
Tilting And Trim Device
Electric tilt and trim
Maximum Overall Efficiency
54 %
Alternative Propeller Options
v32/p10k & v15/p10k
Contiuous Torque / Max. Torque
129 Nm / -
Input Power Continuous (peak)
27.5 kW
Max. Allowed Ambient Temperature
45°C
Min. Voltage For Full Performance
330 V
Comparable Petrol Outboards (shaft Power)
40 HP
Max. Drive Temperature Controller / Motor
90°C / 130°C
Maximum Efficiency El. Input To Mech. Output
89%
Mech. Output Power At Shaft Continuous (peak)
25 kW
Motor Weight Including Electronics And Cabling
139 kg
benefits
  • Deep Blue: the first high-power propulsion system in serial production - fully integrated system in which all components are designed to match each other seamlessly and to work together perfectly on the water
  • An overall concept that is unique in terms of safety, performance and range
  • Battery life traceability: Battery ageing is transparent and can be tracked by the user in the on-board computer at any time



range
Deep Blue 25 R with a 40 kWh Battery



Speed in knots (km/h)* Range in nm (km)* Running time in h*
Slow (2 kW – 6 kW) 5.0 (9.3) 33 - 100 (≈61 - 185) 6.7 - 20
Full throttle (25 kW) 10 (18.5) 16 (≈30) 1.6

* Dependent on factors such as type of boat, load, propeller and ambient conditions. Figures for speed and range are indicative only and are not a guarantee of performance.

Information on range and speed

For a displacement boat making way through the water, the required propulsive power increases in proportion to the cube of the speed. This means that if you want to double your speed, you need eight times as much power.

And vice-versa, a small reduction in speed is enough to increase the achievable range substantially.

The Torqeedo Deep Blue's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS.



technical data deep blue
  Deep Blue Batterie 40 Deep Blue Batterie 80
Nominal voltage 352 V 348 V
Max. continuous performance 55 kW 79 kW
Capacity (usable) 38 kWh 77.6 kWh
Weight 284 kg 562 kg
Dimensions 1666 x 993 x 173 mm 1800 x 853 x 236 mm





literature

Name

Link

Technical Drawing Download
Operating Instructions Download
Product brochure Download
