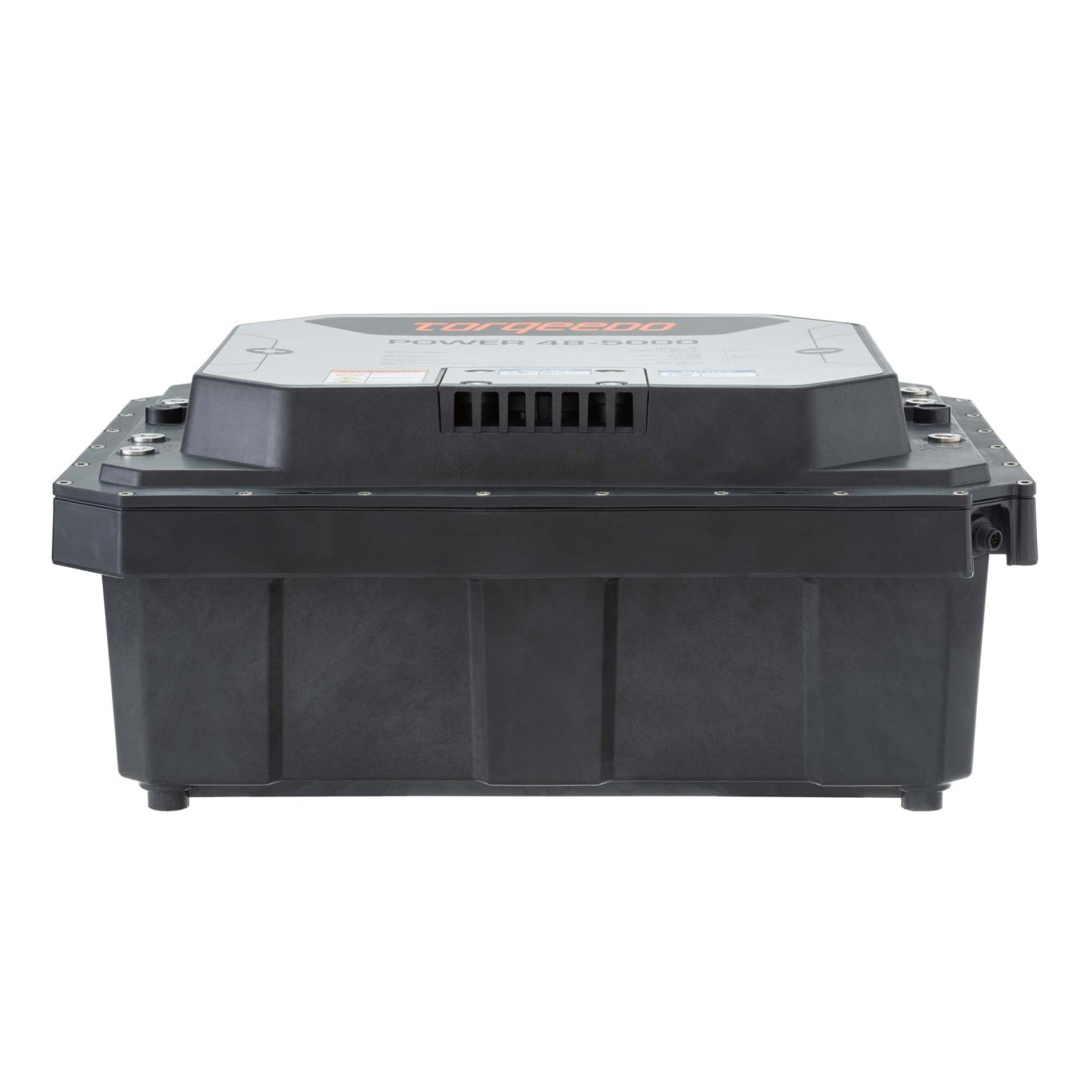

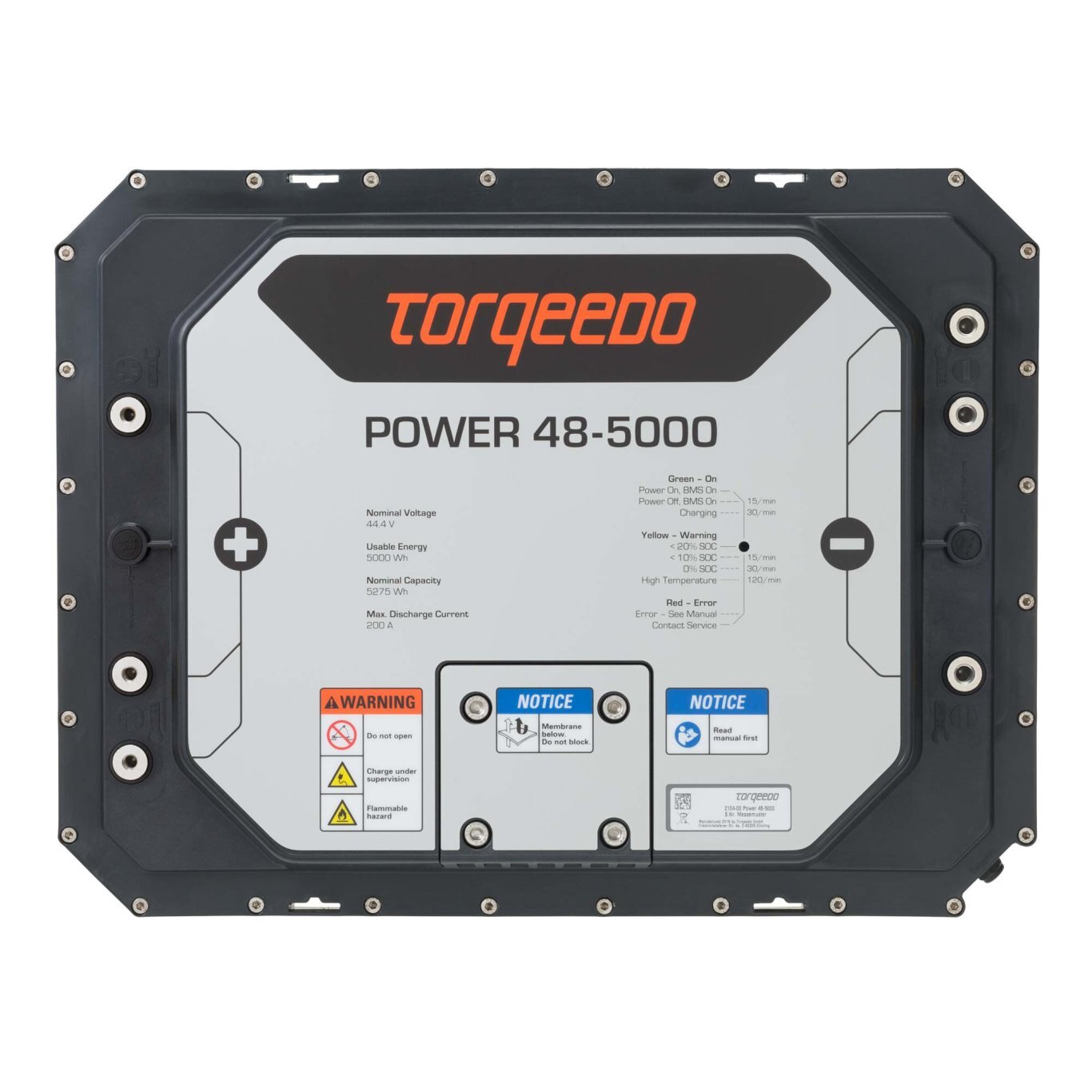

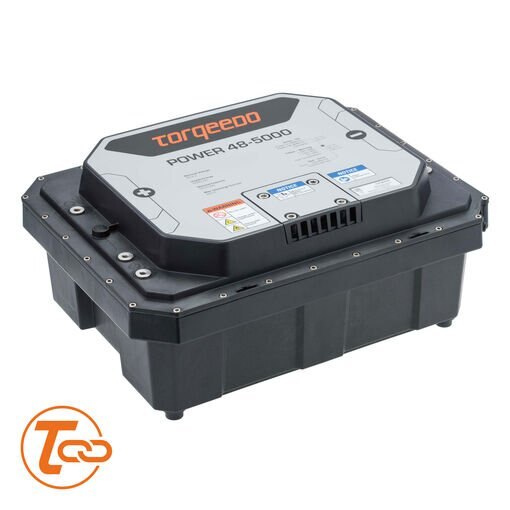

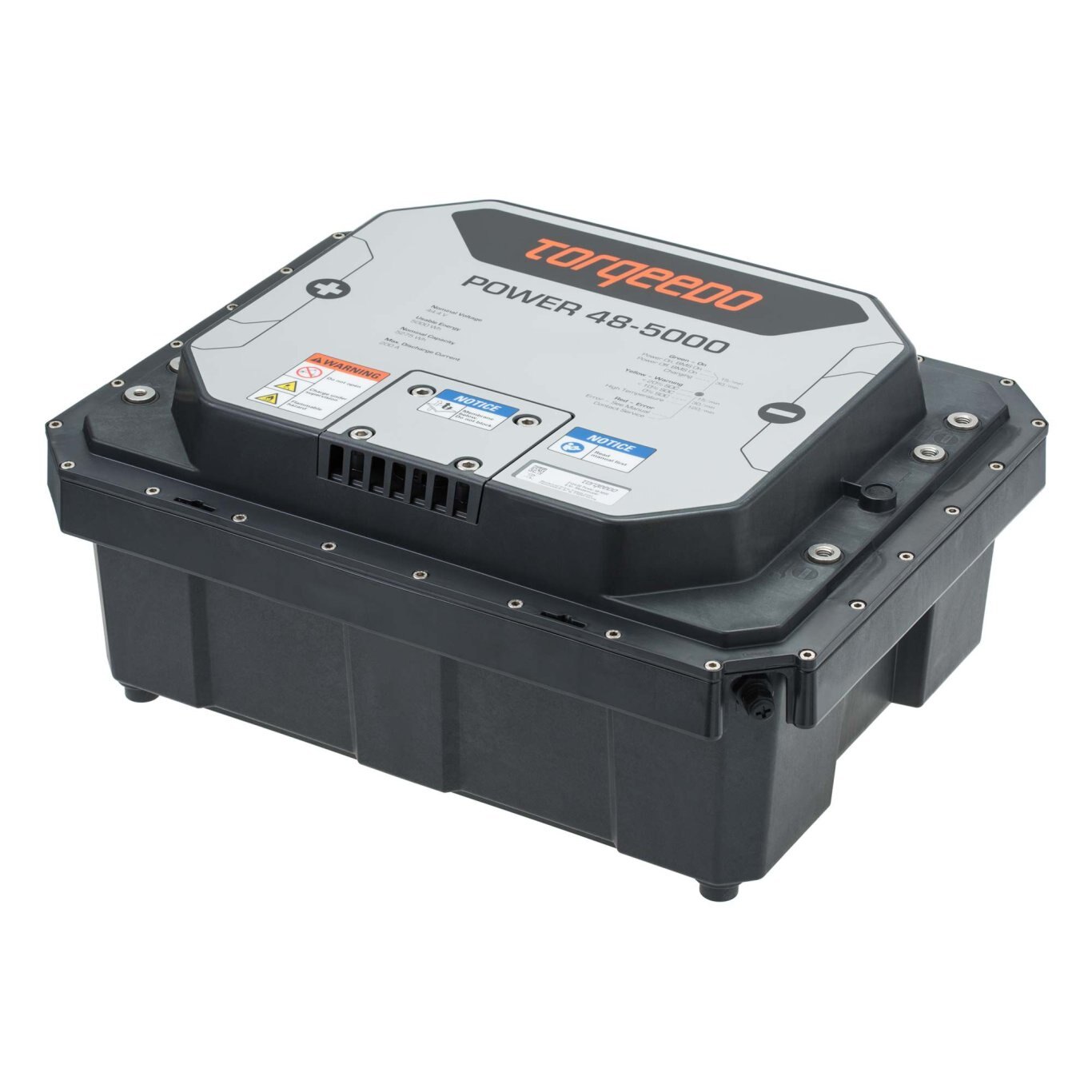

Torqeedo Power 48-5000

  • Torqeedo Power 48 5000
  • Torqeedo Power 48 5000
  • Torqeedo Power 48 5000
  • Torqeedo Power 48 5000
  • Torqeedo Power 48 5000
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
High-performance lithium-ion battery with 5,000 Wh

Product description

  • High-performance lithium battery 5,000 Wh
  • Rated voltage 44.4 V
  • Weight 36.5 kg
  • Including battery management system with integrated protection against overcharging, short circuit, deep discharge, polarity reversal, overheating and submersion
  • Waterproof to IP67

A class of its own in lithium batteries for boats: 70% more energy density and 50% longer cycle life than typical lithium LiFePO4 batteries.

With Power 48-5000, Torqeedo brings a new class of lithium batteries to the market. Based on automotive technology and BMW i battery modules, Power 48-5000 delivers industry-leading value with its combination of energy density, long service life, ISO standards compliance, and cost.

TorqLink is Torqeedo’s advanced electronics communication system developed for Deep Blue and now available for select Cruise motors, throttles and Power 48-5000 batteries. All products marked TorqLink will communicate seamlessly at startup. A TorqLink Gateway (2217-00) allows you to include components without TorqLink in your system.



Specifications
Model
Power 48-5000
Category Name
Outboard Engines
Year
2025
Sale Type
New
Manufacturer
Torqeedo
EAN
4260113695104
Volume
31 l
Weight
36.5 kg
Capacity
5275 Wh
Item Number
2104-00
Nominal Voltage
44.4 V
Battery Chemistry
LMO-NMC
Price-performance
1,00 EUR/Wh
Dimensions (L X H X B)
506 mm x 224 mm x 386 mm
Maximum Discharge Rate
200 A
Power Density (volume)
280 W/l
Power Density (weight)
250 W/kg
Energy Density (volume)
160 Wh/l
Energy Density (weight)
145 Wh/kg
Final Discharging Voltage
36.0 V
Average Annual Capacity Loss
Approx. 4% at 25°C ambient temperature
Maximum Discharge Rate At Nominal Voltage
8,800 W
usage information
Ambient temperature, discharging -10°C up to +50°C
Ambient temperature, charging   0°C up to +45°C
Ambient temperature, storage -25°C up to +60°C
Typical storage time at 50% SOC
Max. connections 1S1P or 1S2P
Max. quick charge 120 A
Protection class IP67 Waterproof, can be submerged to depth of 1 metre for 30 minutes without damage





battery composition
Number of cells 12S1P BEV
Cell housing
Capacity per cell
Nominal voltage per cell
Cell connection





battery management system and safety
On-off switch Yes CAN
Cell balancing Yes
High-current and short-circuit protection
Deep discharge protection Yes, cut-off at < 36 V
Protection against polarity reversal Yes
Individual cell voltage monitoring Yes
Current interruption device (CID) for each cell Yes
Safety vent for each cell Yes
Cell temperature monitoring Yes
Temperature monitoring of battery electronics Yes
Automatic shutdown in the event of submersion Yes






information system
Interface CAN
Electronic battery identification Yes Important for connecting multiple batteries into battery banks
Data logging Yes Important for warranty information





literature

Name

Link
Operating Instructions Download
Declaration of Conformity Download
Technical Drawing Download
